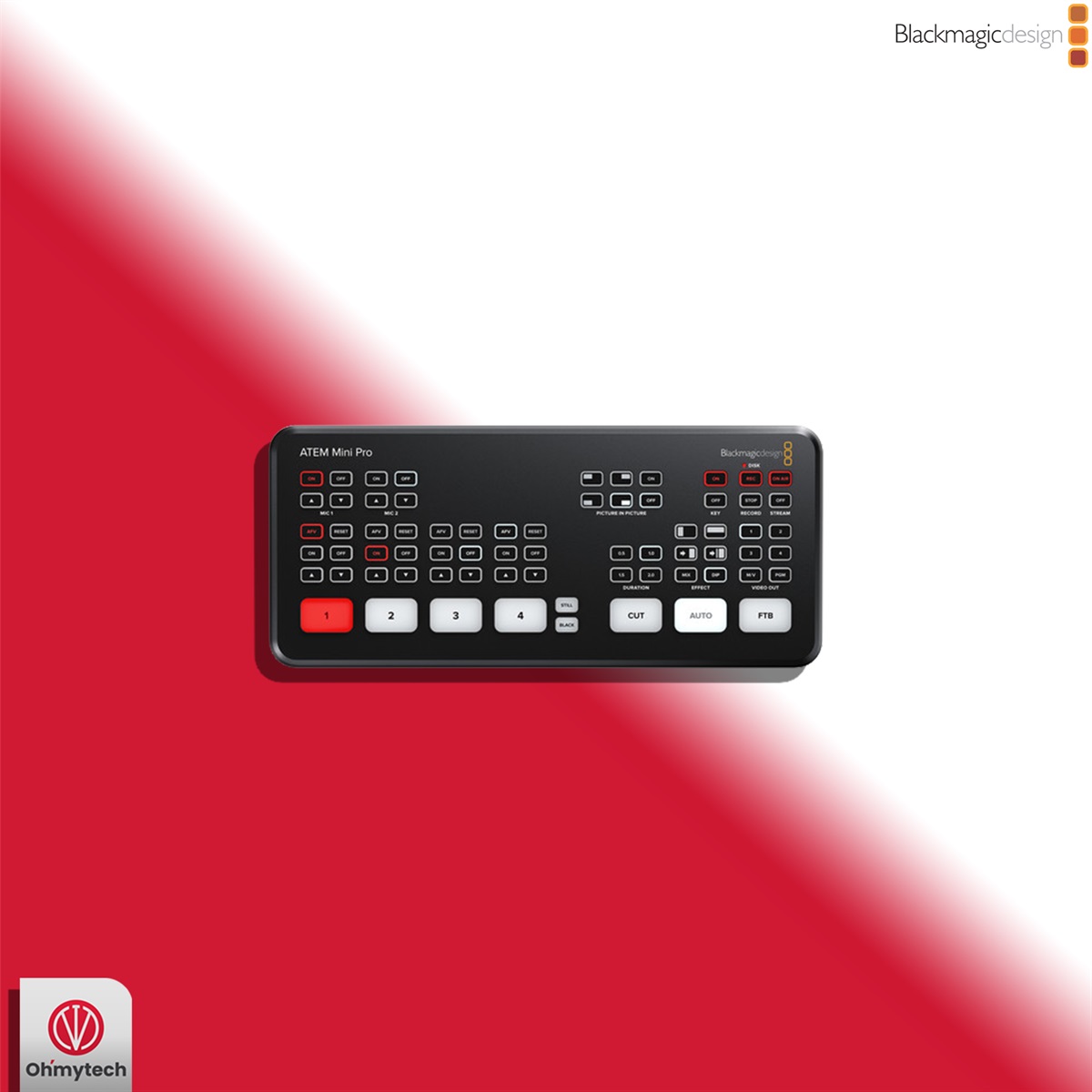

Similar to its predecessor, the ATEM Mini, the ATEM Mini Pro from Blackmagic Design is a four-input live production switcher with an integrated control panel designed for multicamera live streaming up to HD video to the internet or broadcast applications from gaming consoles, corporate computer streams, or HD cameras. Along with the software control update, the Mini Pro builds on the Mini with features such as live stream data rate and status information, a built-in hardware encoder, simultaneous recording to USB drives, drive hot swapping with the Blackmagic MultiDock, added record and stream buttons, stream caching, a timecode generator, program preview multiview, tally support, and support for Blackmagic Design Pocket Cinema Camera 6K and 4K to utilize as your broadcast sources.
The ATEM Mini Pro retains the same rear-panel setup on which four HDMI inputs are available on the rear of the chassis and they input up to 1080p HD video. There is also an HDMI output for a projector or multiview monitoring, a USB Type-C output as for recording HD video to a computer, and an RJ45 10/100/1000 Ethernet port for direct live streaming as well as system management, remote control, and upgrades. You can adjust frame rate depending on the quality of your stream, and there is no need for additional streaming software because the Pro includes a built-in hardware encoder.
The updated ATEM Software Control Panel is used for control and configuration of the ATEM Mini Pro via USB or Ethernet, and it allows you to monitor the data rate, audio meters, configuration, and status of your live feed. The built-in color control panel has the same configuration of DaVinci Resolve, eliminating any learning curve. Advanced features include the ability for engineers to upload an XML configuration file to make it easier to change all your settings at once.
New Features
-
Same rear panel as ATEM Mini with added buttons and software features
-
Stream video up to 1080p HD
-
Quick stream, on-air and record buttons
-
Hardware encoder so there's no need for additional streaming software
-
Control and configure timecode, stream status
-
Full support and control features for BMPCC 6K and 4K cameras
-
Simultaneous USB recording
-
Integration with MultiDock for live hard drive switching
-
Customize advanced settings with XML files
-
Software multiview with program previews, graphics, record status, on air status, audio meters
-
Program preview input and output buttons
-
Tally light control for BMPCC 6K/4K cameras
-
Automatic timecode sync for all cameras
-
Monitor Output
The HDMI monitor output allows you to see your sources, graphics, preview, and program output on a single screen.
-
Media Player
Eliminate external character generators by storing up to 20 broadcast-quality RGBA graphic files in the media pool. The one media player appears as input sources to your switcher. You can transition to graphics as full-frame video, or feed them to the keyers for overlaying video. Popular image formats such as PNG, TGA, BMP, GIF, JPEG, and TIFF are supported.
